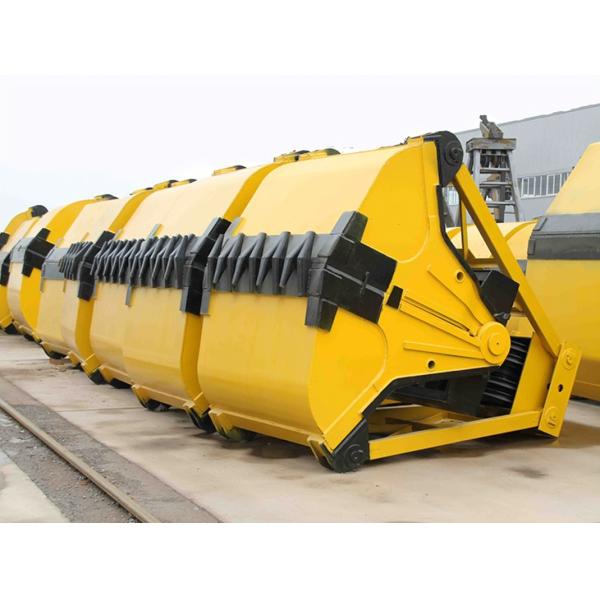

OEM Flap Mechanical Clamshell Crane Bucket Double Rope
Product Description
Electric motor grab are often used to utility of all kinds of crane with their own open and close institutions, can be load and unload material in any height.Productivity is higher than the single grab, easying to operation,loading and unloading power high. Apply to grab all kinds of loose materials. Using this grab,according to hoist height add the cable reel machine conveying energy.
It is opened under the suspended state, and the material is scattered on the material pile. The opening and closing of the jaw plate is generally controlled by the wire rope of the hoisting mechanism of the crane. Grab bucket operation does not require heavy manual labor, which can achieve high loading and unloading efficiency and ensure safety. It is the main dry bulk cargo handling tool in ports. According to the types of working goods, it can be divided into ore grabs, coal grabs, grain grabs, timber grabs, etc.
Features:
1. Electric motor grab has the advantages of simple structure and good perform of rope grab and also the high productivity of the powered grab.
2. Electric motor grab can be used in single hook crane and ship deck cranes. The grab is widely used in ship, port, railway station, factory, mine and other transport departments. Suitable for all type of bulk cargos like grain, fertilizers, cement, coal, barley, wheat, iron ore, sun flower seed, corn, maize, clay and etc.
3. Manufactured in every capacity 3 cbm to 30 cbm with reducing capacity system.
4. Supplied with removable spill plates, giving the capability to work light and heavy cargos with the one grab.
5. Radio remote control unit gives facility to start or stop the grab with one button. Radio control unit will operate from 100 m distance from the grab.
6. Work with oil circulation and battery.
Technical Details Sheet
| Electric six petals grab Mechanism |
| Model | LD1 | LD2 | LD3 | LD4 |
| volume /M3 | 0.5 | 1 | 1.5 | 0.75 |
| Type | Heavy | Heavy | Medium | Heavy |
| Proportion of materials/ t/m3 | 1.2 | 1.6-2 | 1.7-1.8 | 1.2 |
| Capturing the material / t | 1.3 | 1.3-1.73 | 2.1-2.3 | 1.3 |
| Percentage of pulley | 4 | 4 | 4 | 4 |
| The diameter of steel wires /mm | 9.2 | 19 | 19.5 | 9.2 |
| The diameter of pulley/mm | 250 | 260 | 260 | 250 |
| Tons of the match hoist crane /t | 3 | 5 | 5 | 3 |
| Self-weight of grab /t | 0.93 | 2.35 | 3.1 | 1.53 |
| Total height of grab /mm | 1860 | 1941 | 2720 | 2250 |
Notes Design as customer's demand Above information just for reference, detail parameter
based on different lifting weight. Electric current
380V 50HZ Three-phaze |
| Width of Trail | 30-70mm |
| Operation method | Cabin control,wireless control |
| Lifting mechanism | Electric winch trolley |
| Power supply | 220v/240v/380V/400v 50/60Hz,3P |
Product Sketch
